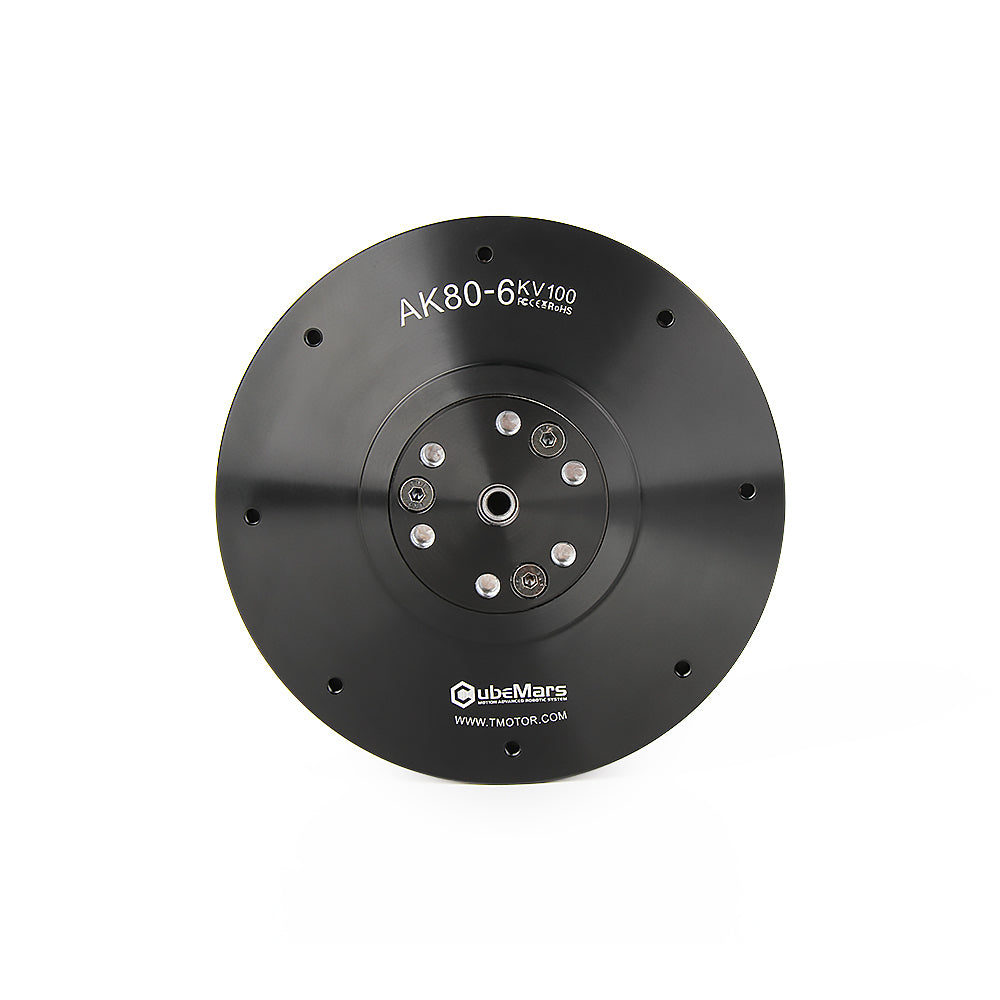

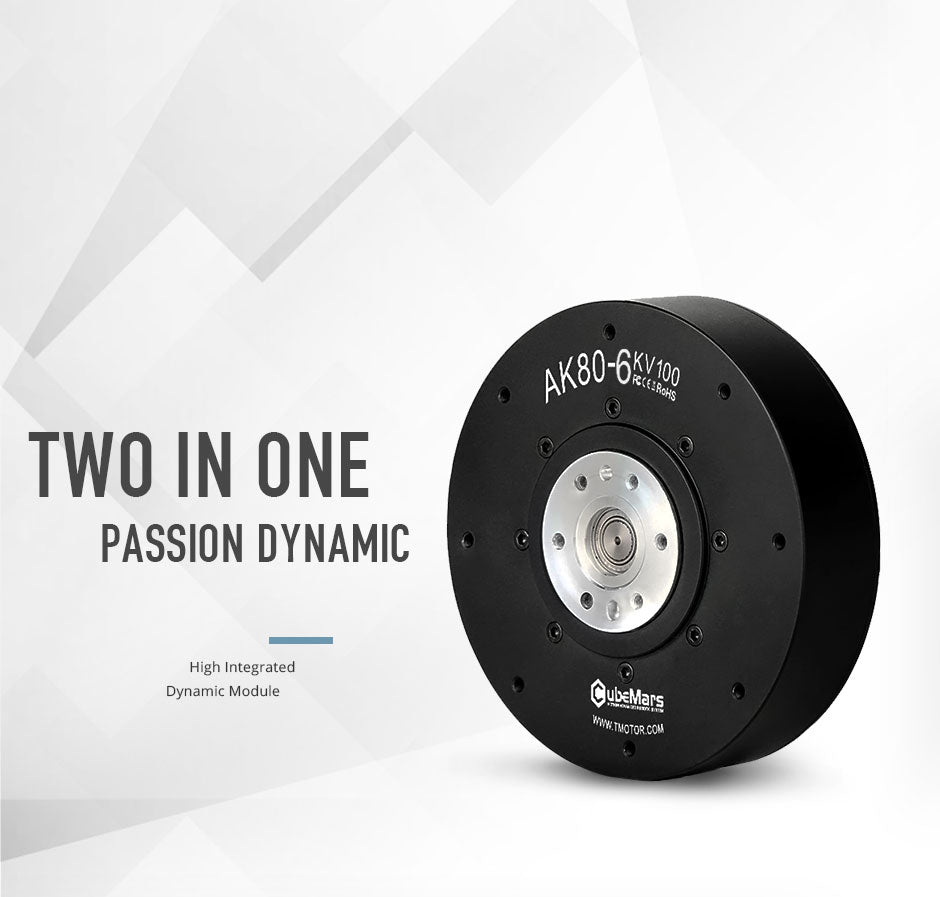

• CubeMars T-Motor AK80-6 robotics actuator with controller. KV100. Front view. Black color. Made of steel. Diameter: 98 mm. Holes for 8 bolts to fix the motor. The rotor allows 6 bolts to be screwed in.

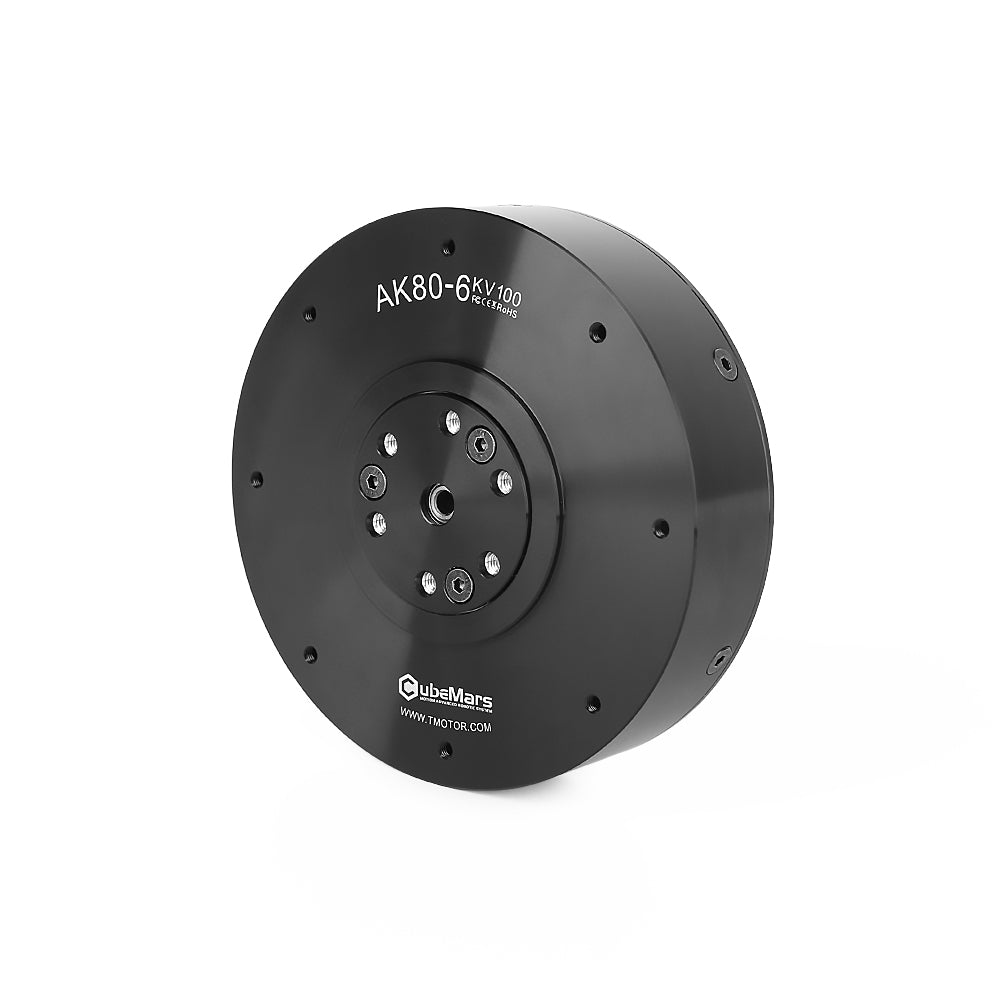

  • CubeMars T-Motor AK80-6 robotics actuator with controller. KV100. Clockwise angle front view. Black color. Made of steel. Diameter: 98 mm.
  • CubeMars T-Motor AK80-6 robotics actuator with controller. KV100. Anticlockwise angle front view. Black color. Made of steel. Diameter: 98 mm.

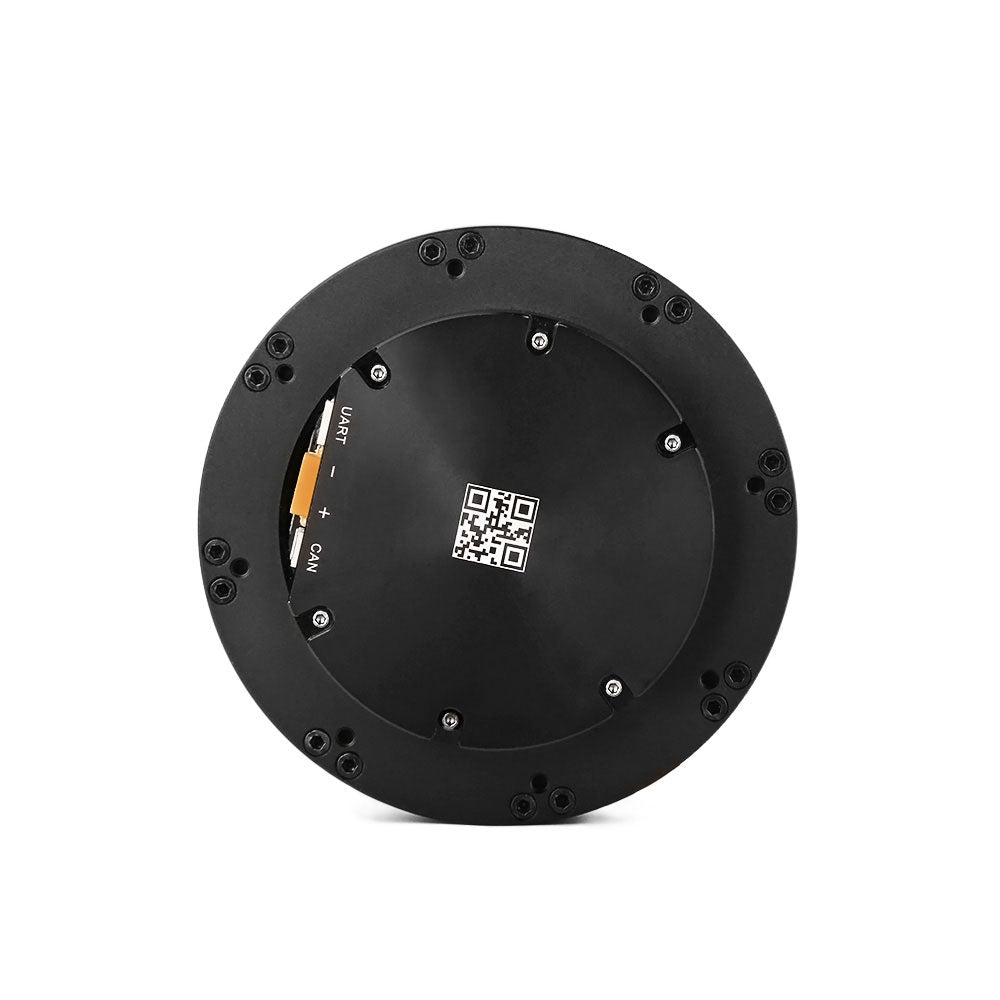

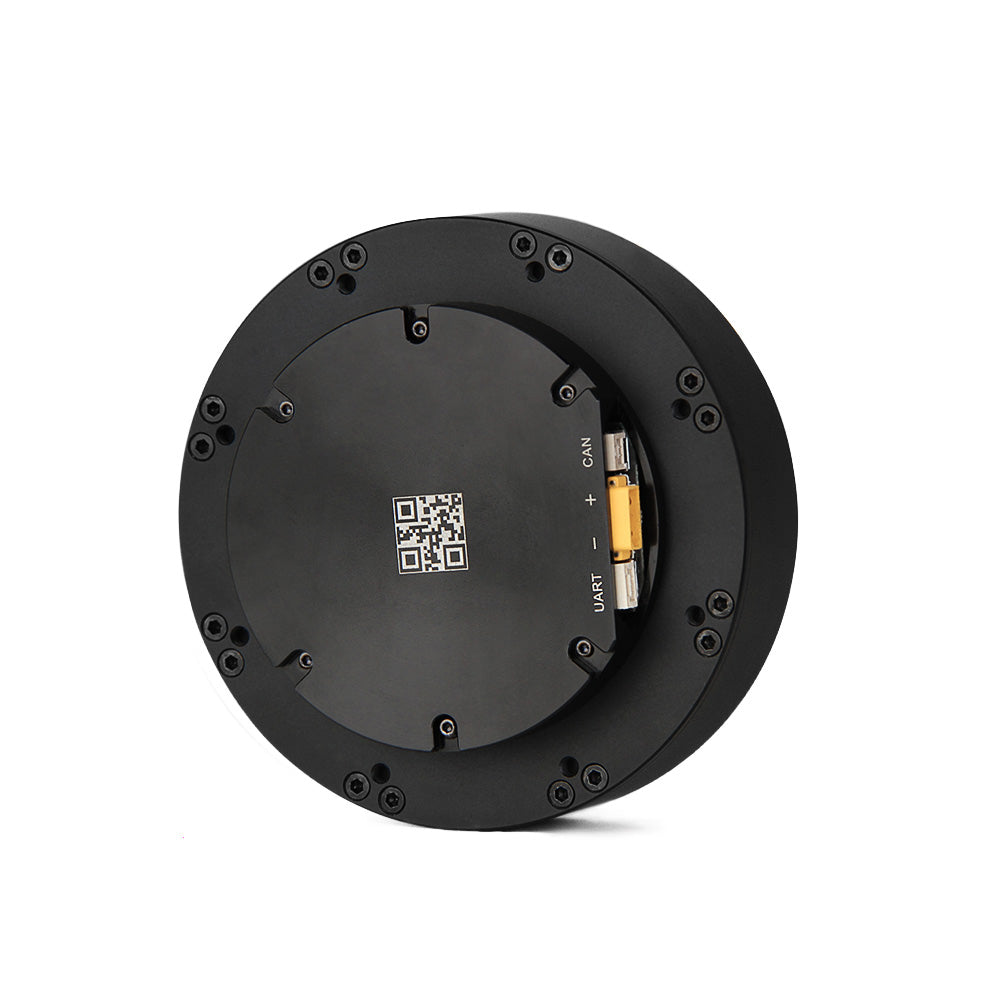

  • CubeMars T-Motor AK80-6 robotics actuator with controller. KV100. Back view. Black color. Made of steel. Diameter: 98 mm. UART, POWER, CAN.

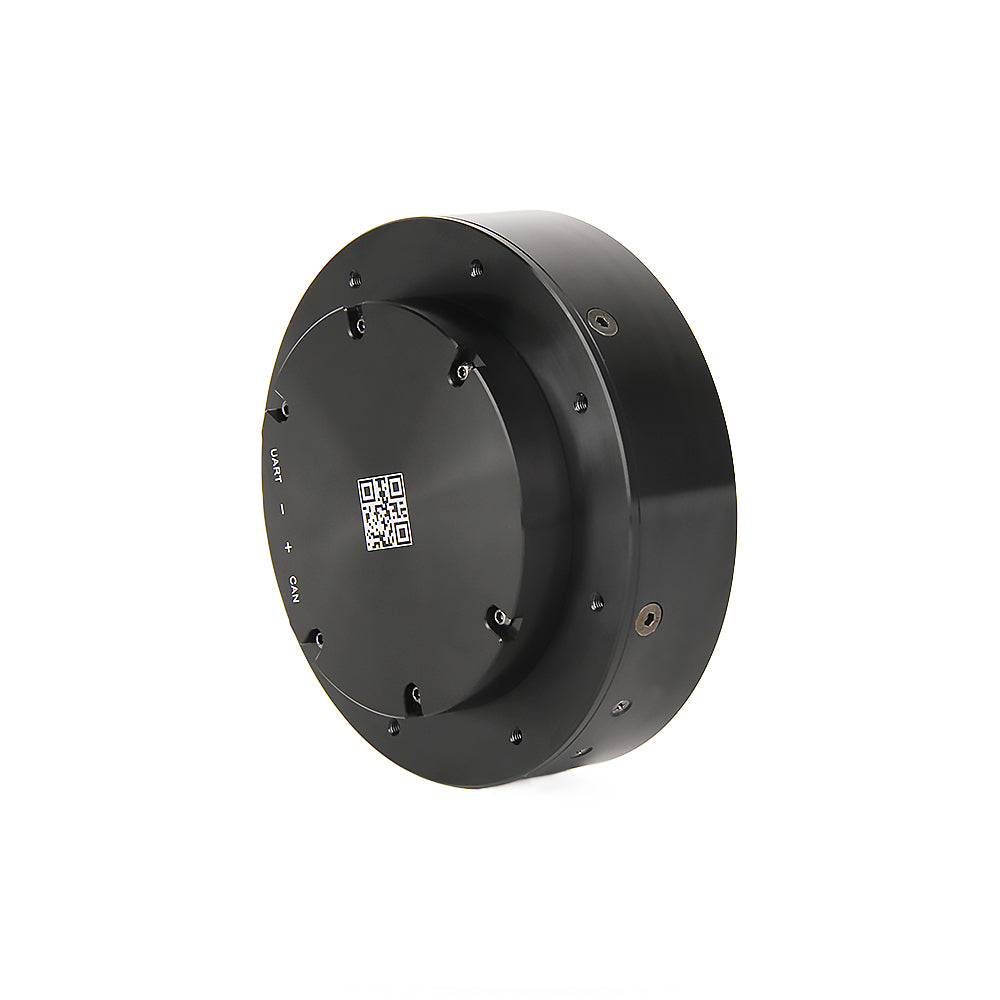

  • CubeMars T-Motor AK80-6 robotics actuator with controller. KV100. Clockwise angle back view. Black color. Made of steel. Diameter: 98 mm. UART, POWER, CAN.

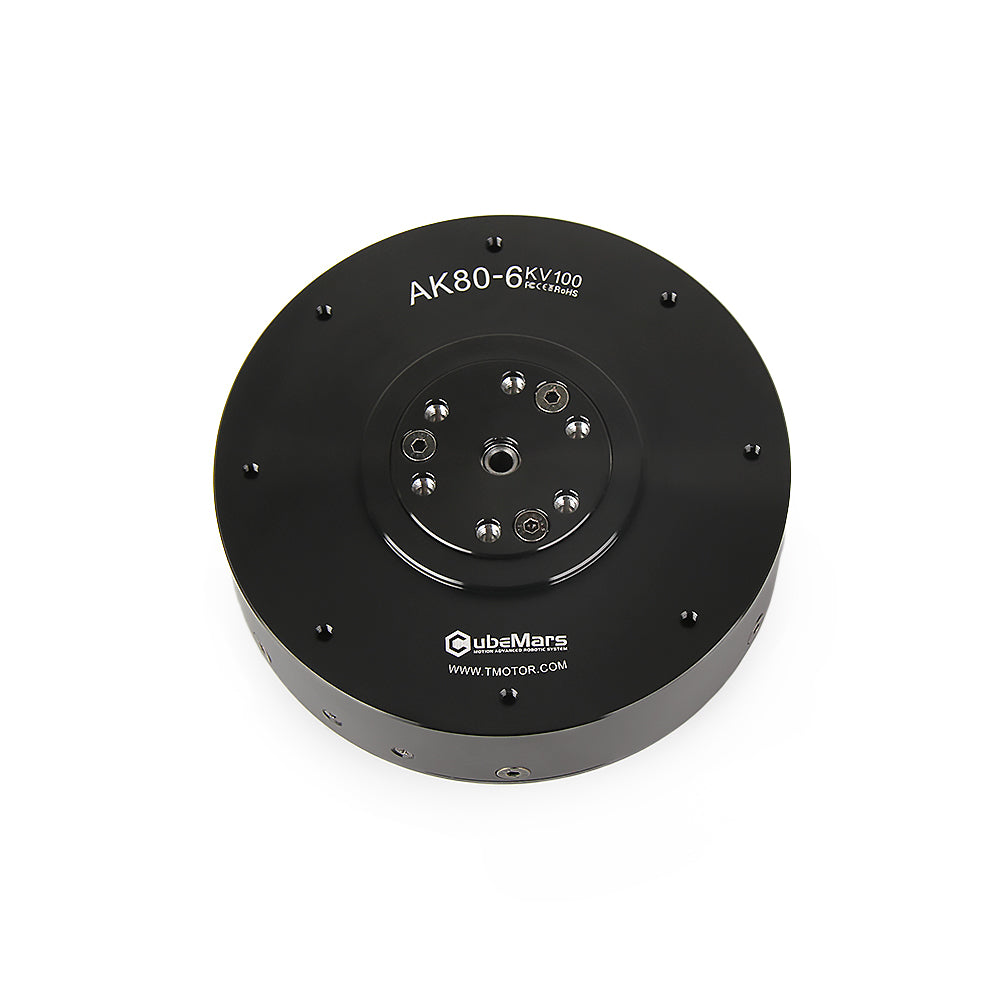

  • CubeMars T-Motor AK80-6 robotics actuator with controller. KV100. Front view from above. Black color. Made of steel. Diameter: 98 mm. Holes for 8 bolts to fix the motor. The rotor allows 6 bolts to be screwed in.

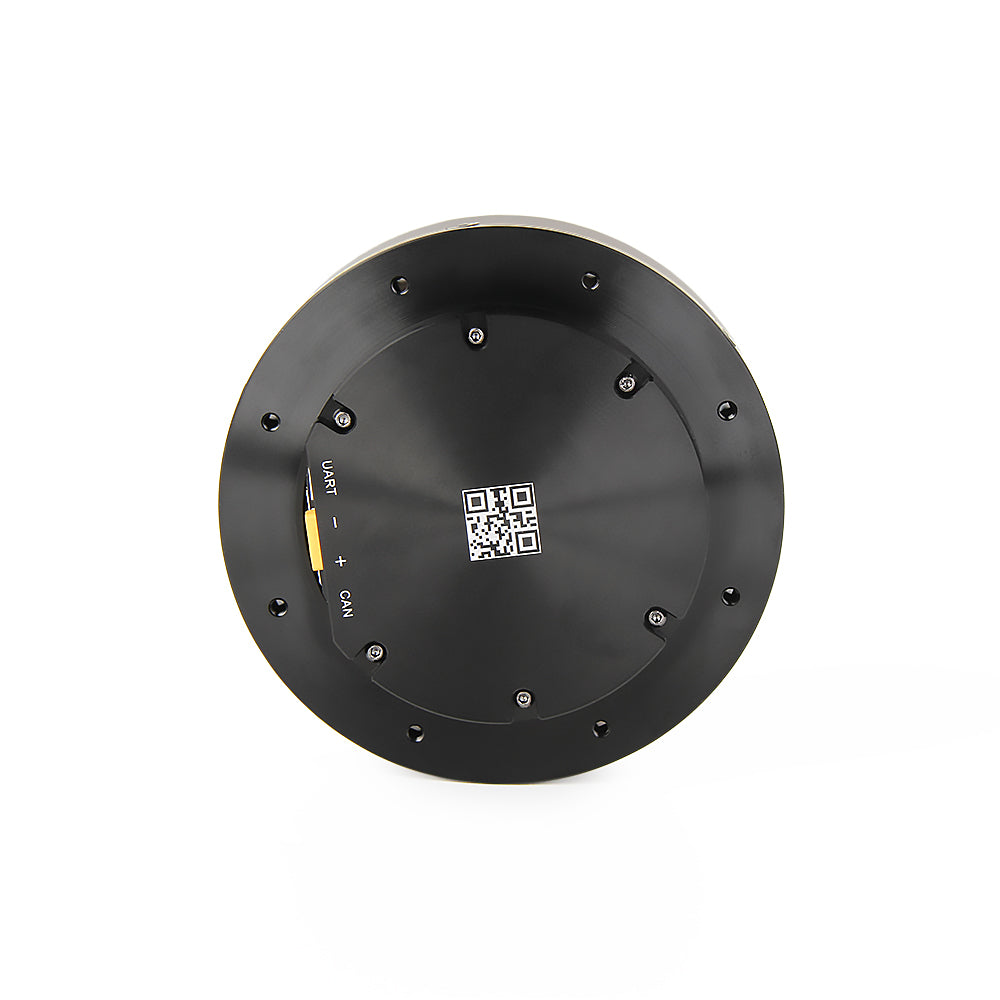

  • CubeMars T-Motor AK80-6 robotics actuator with controller. KV100. Back view. Black color. Made of steel. Diameter: 98 mm. UART, POWER, CAN.
  • CubeMars T-Motor AK80-6 robotics actuator with controller. KV100. Back view. Black color. Made of steel. Diameter: 98 mm. UART connector: A1257-WR-S-3P. Power connector: XT30PW-M. CAN connector: A1257-WR-S-4P.
  • CubeMars T-Motor AK80-6 robotics actuator with controller is a highly integrated, dynamic module servo motor.
  • CubeMars T-Motor AK80-6 robotics actuator with controller weighs only 485 grams and is as thin as 38.5 mm.
  • CubeMars T-Motor AK80-6 robotics actuator with controller has low noise operation and strong power. Smooth running. High precision control up to 0.1 degrees.

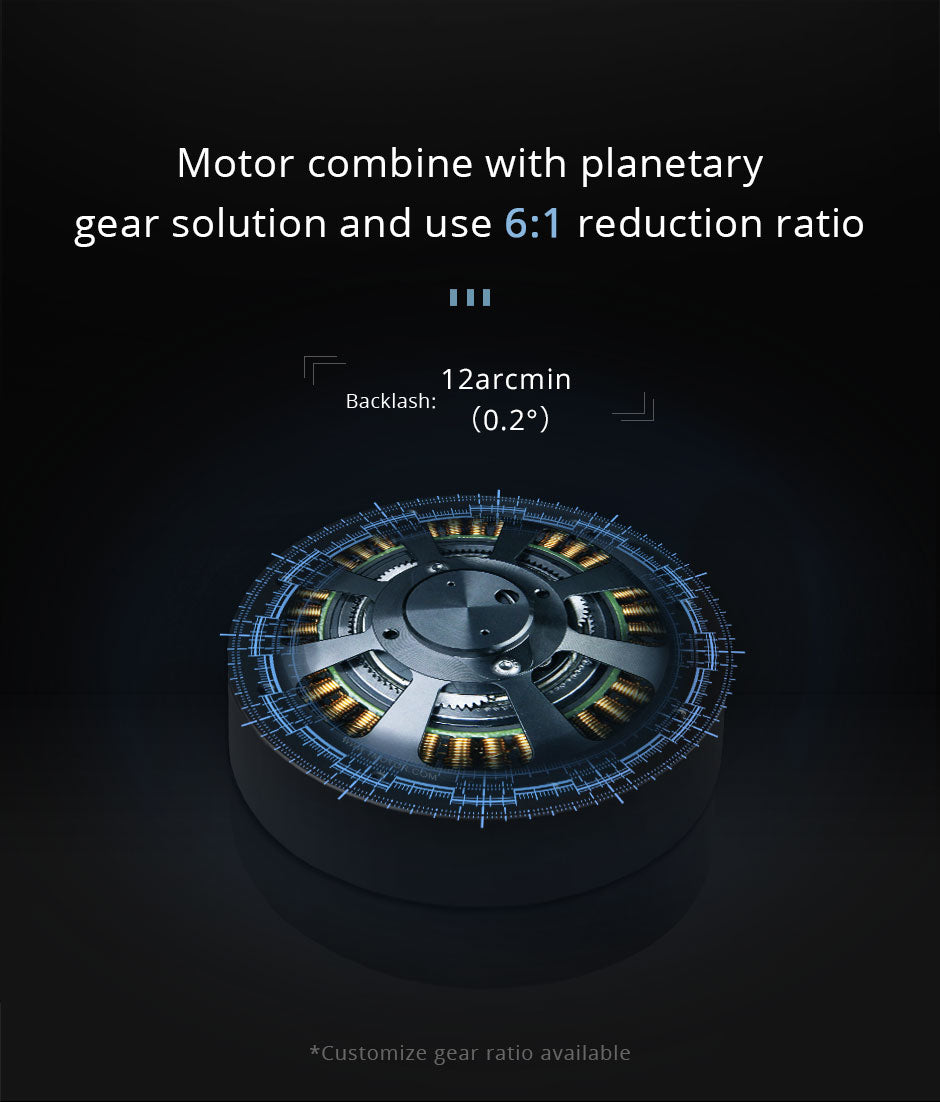

  • CubeMars T-Motor AK80-6 robotics actuator is a BLDC electric motor with planetary gear which has reduction ratio of 6:1. The servo's backlash is 12 arcmin (0.2 degrees).

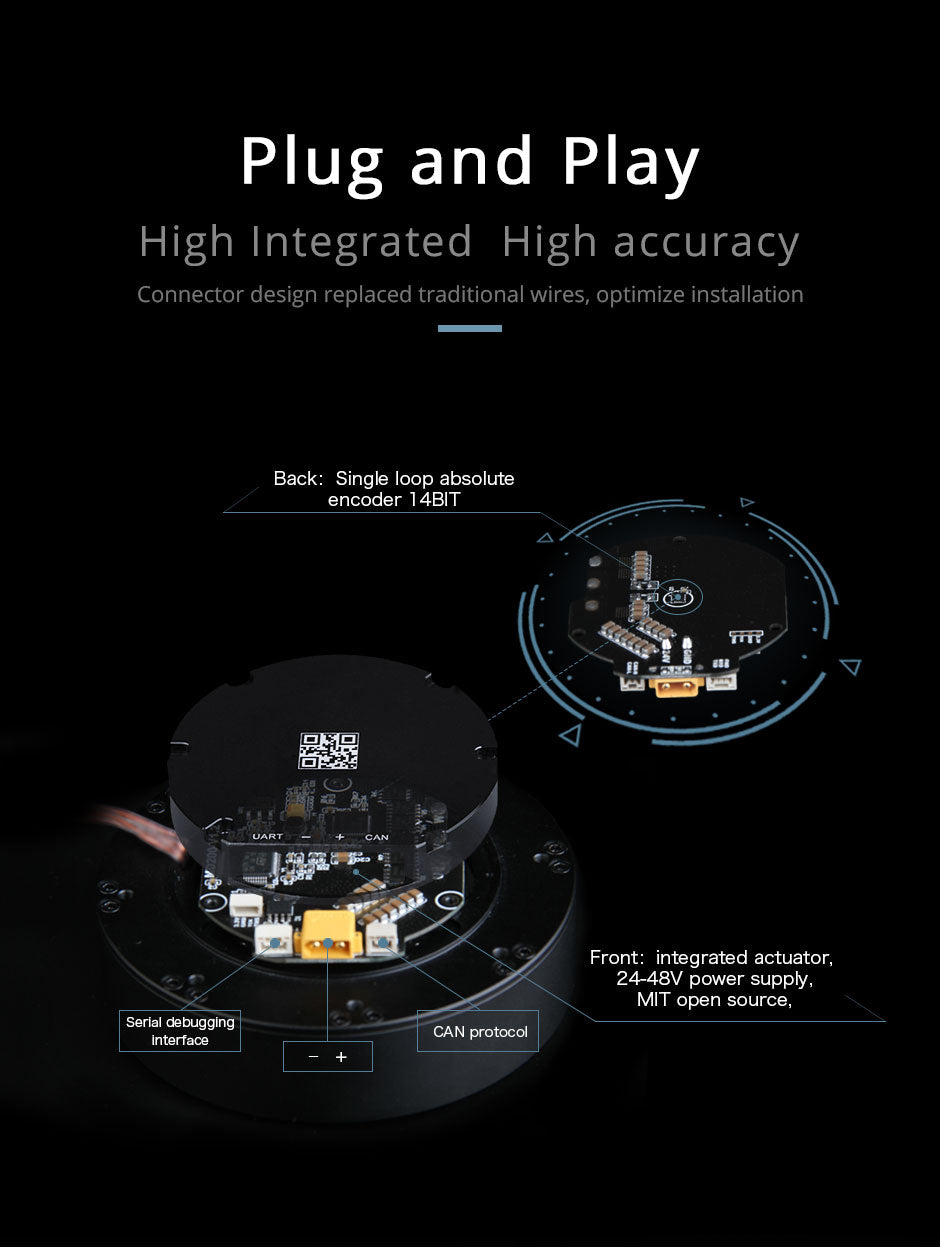

  • CubeMars T-Motor AK80-6 robotics actuator has MIT Mini Cheetah open source controller (drive board). 14 bit encoder. Serial interface. CAN protocol. Power socket for 24V power supply.

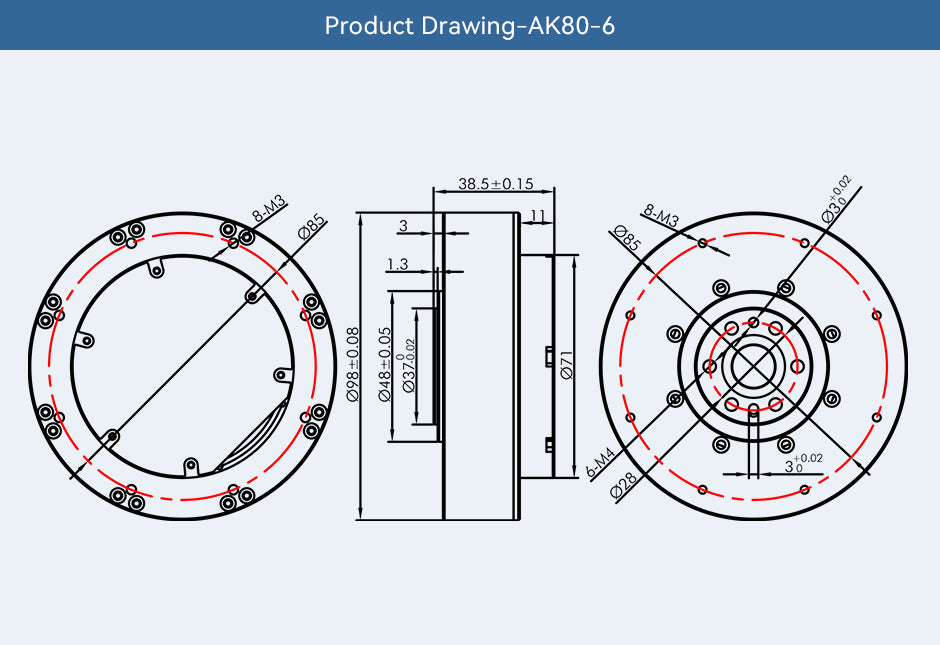

  • CubeMars T-Motor AK80-6 robotics actuator technical drawing. Diameter: 98 mm. Hight: 38.5 mm.

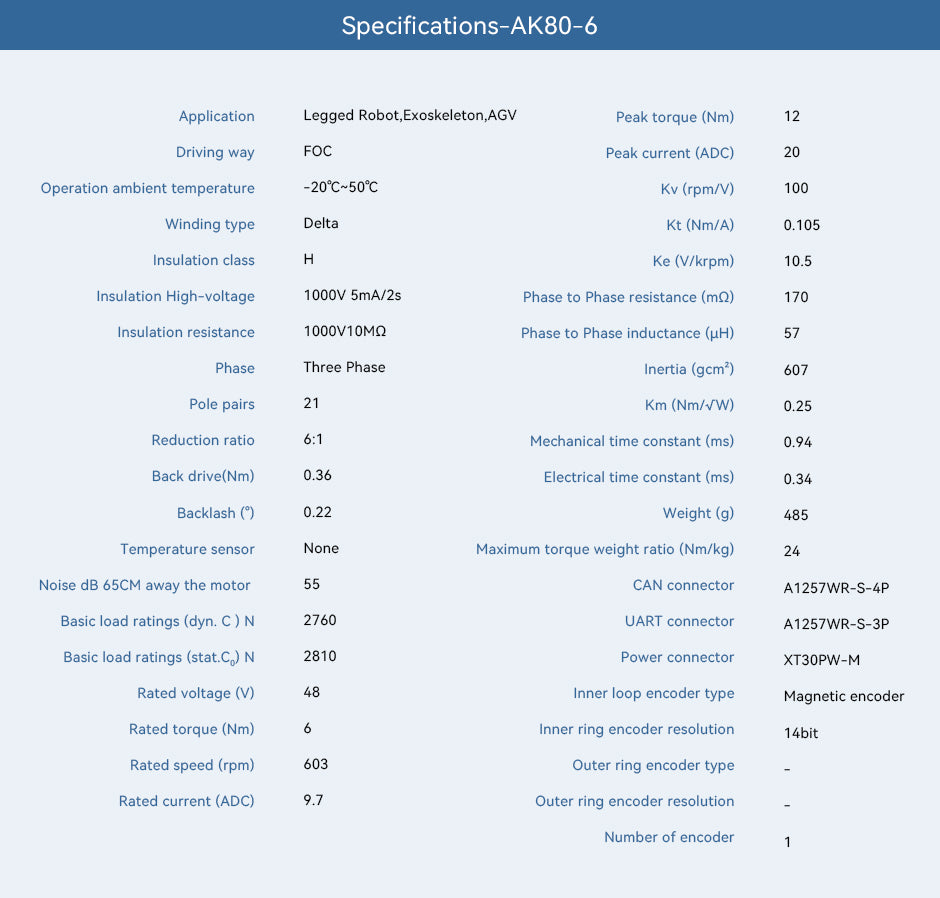

  • CubeMars T-Motor AK80-6 robotics actuator with controller technical specifications. The specifications are listed on the product's page at Emotor.Market
1 15

CubeMars

CubeMars (T-Motor) AK80-6 actuator with controller

CubeMars (T-Motor) AK80-6 actuator with controller

$570.00 USD
$570.00 USD
Sale Sold out
Shipping calculated at checkout.
The price includes customs duties within the US. There is free expedited (2-3 business days) delivery across the US. For addresses outside the US shipping fees are calculated at checkout.

AK80-6 is a super fast, quite powerful and compact, high precision servo actuator (brushless DC motor with planetary gear and integrated controller) for robotics. Its key specifications:
  • Controller: MIT Mini Cheetah open-source controller
  • Applications: quadruped robot / legged robot, AGV / AMR (automated guided vehicle / autonomous mobile robot), robotic arm / cobot (collaborative robot)
  • Weight (lb / g): 1.07 / 485
  • Peak torque (Nm): 12
  • Rated torque (Nm): 6
  • Peak current (ADC): 20
  • Rated current (ADC): 9.7
  • Rated voltage (V): 48
  • Rated speed (rpm): 603
  • Kv (rpm/V): 100
  • Kt (Nm/A): 0.105
  • Ke (V/krpm): 10.5
  • Planetary gear reduction ratio: 6:1
  • Backdrive (Nm): 0.36
  • Backlash (°): 0.22
  • Noise (dB 65 cm away from the motor): 55
  • Maximum torque / weight ratio (Nm/kg): 24
  • Drive control method: FOC (field-oriented control)
  • Operation temperature (°C): -20 ~ +50
  • Winding type: Delta
  • Insulation class: H
  • Insulation high-voltage: 1000V 5mA/2s
  • Insulation resistance: 1000V10MΩ
  • Phase: 3
  • Pole pairs: 21
  • Temperature sensor: -
  • Basic load ratings (dyn. C) N: 2760
  • Basic load ratings (stat. C₀) N: 2810
  • Phase to phase resistance (mΩ): 170
  • Phase to phase inductance (µH): 57
  • Inertia (gcm²): 607
  • Km (Nm/√W): 0.25
  • Mechanical time constant (ms): 0.94
  • Electrical time constant (ms): 0.34
  • Inner loop encoder type: Magnetic encoder
  • Inner ring encoder resolution: 14-bit
  • Outer ring encoder type: -
  • Outer ring encoder resolution: -
  • Number of encoders: 1
  • CAN connector: A1257-WR-S-4P
  • UART connector: A1257-WR-S-3P
  • Power connector: XT30PW-M
