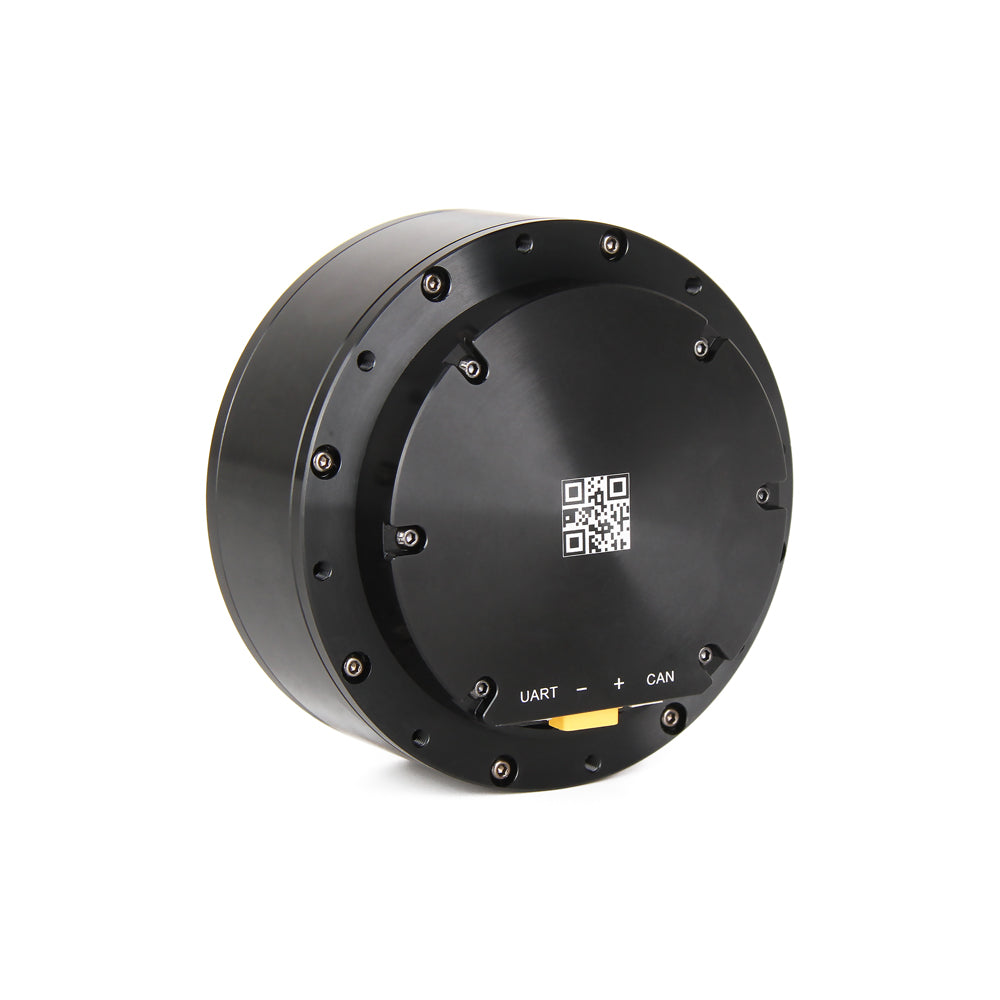

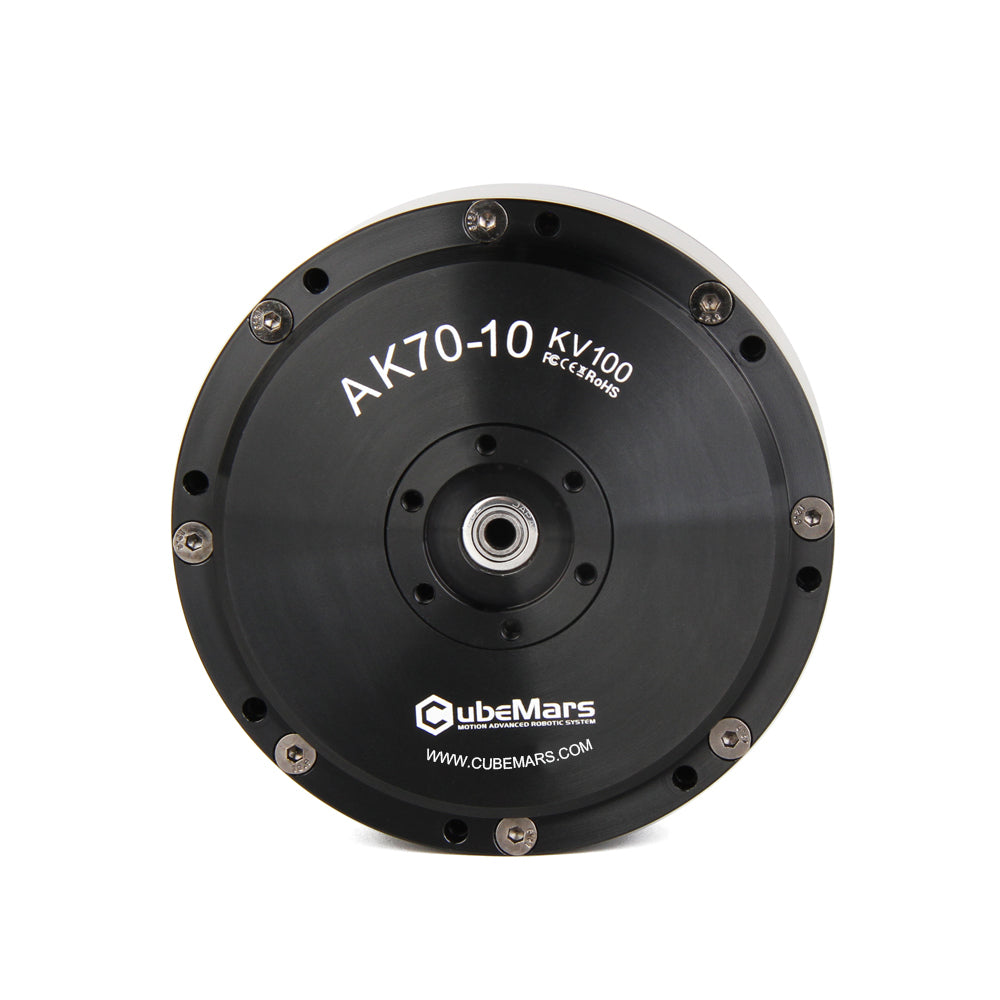

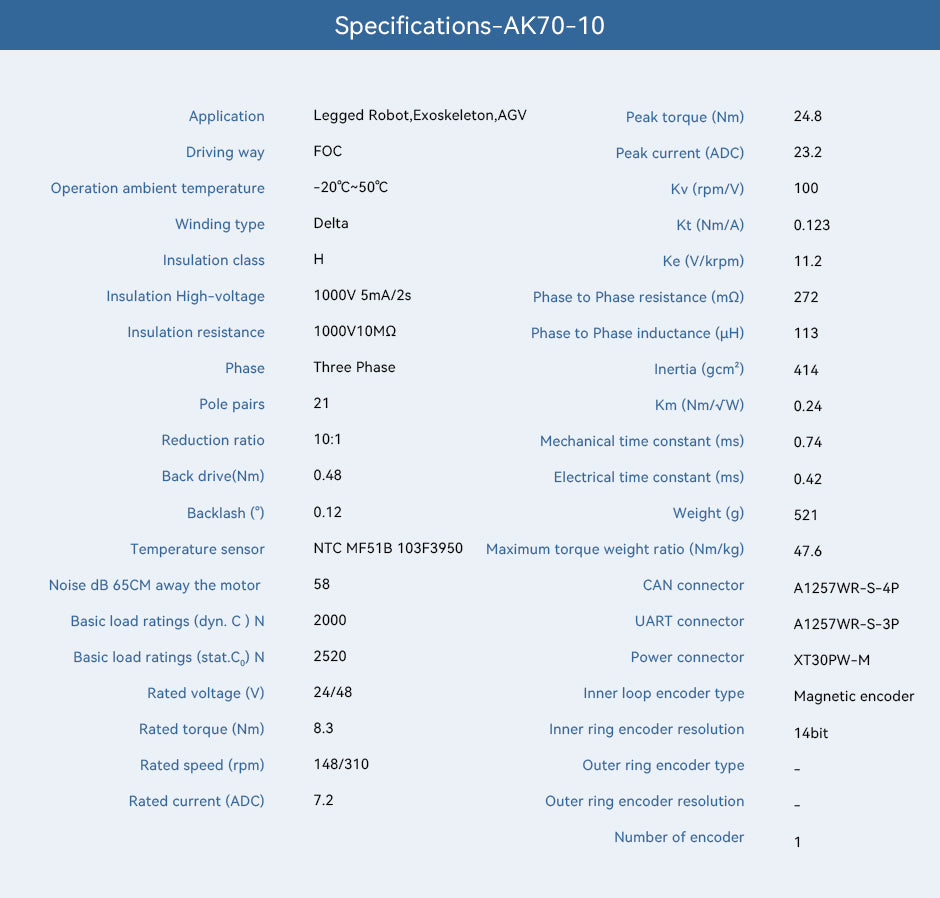

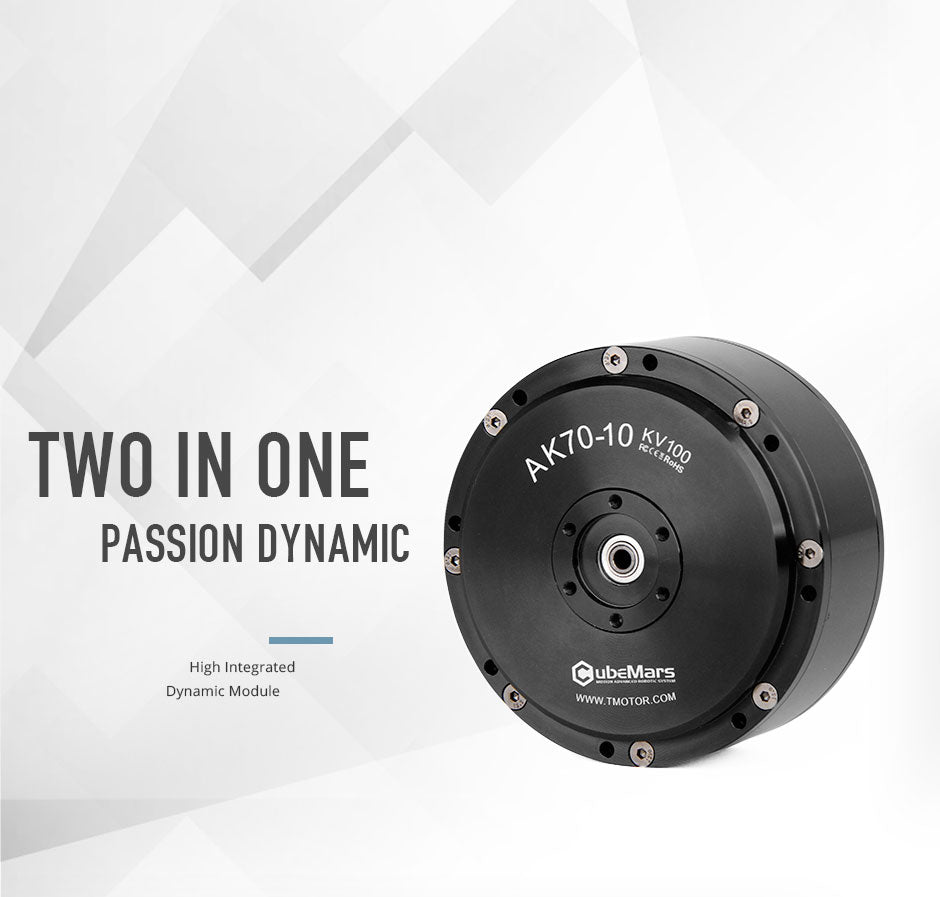

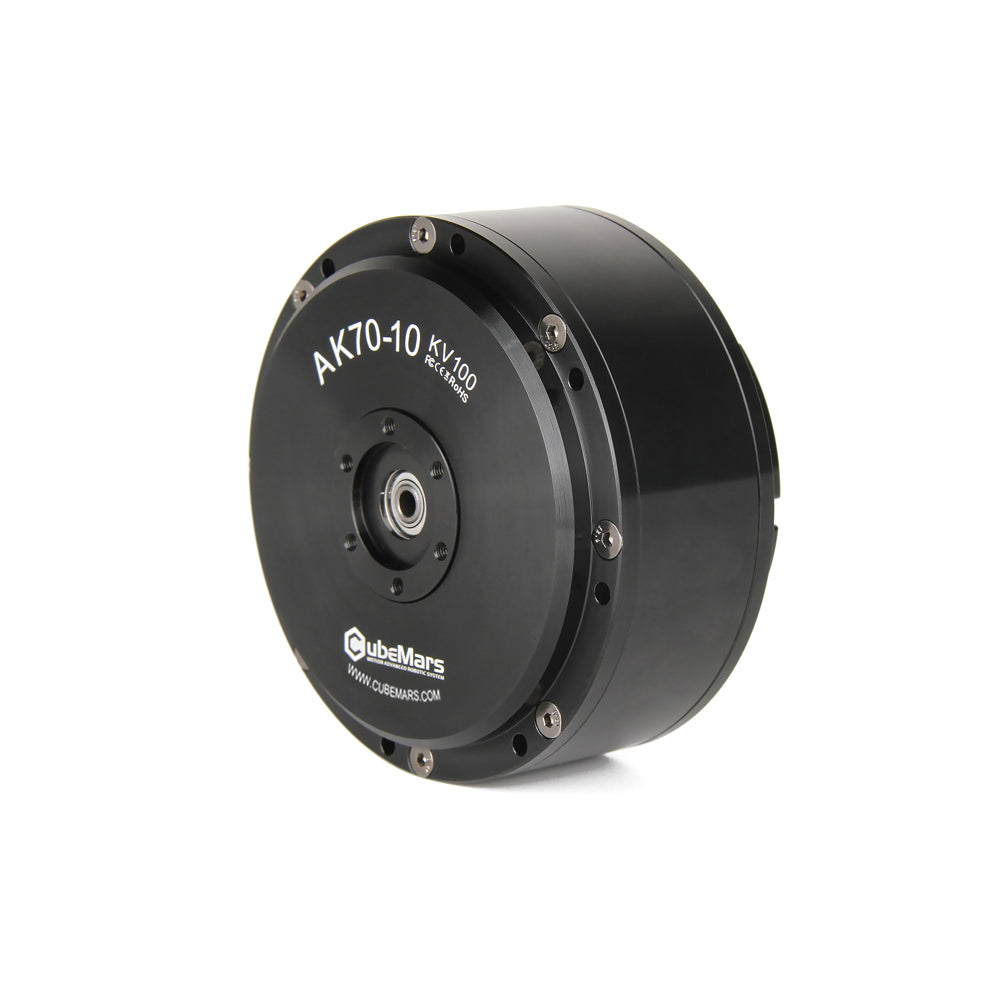

AK70-10 is a high torque, high precision, compact servo actuator (brushless DC motor with planetary gear and integrated controller) for robotics. One of the best in class. Its key specifications:
- Controller: MIT Mini Cheetah open-source controller
- Applications: quadruped robot / legged robot, AGV / AMR (automated guided vehicle / autonomous mobile robot), robotic arm / cobot (collaborative robot)

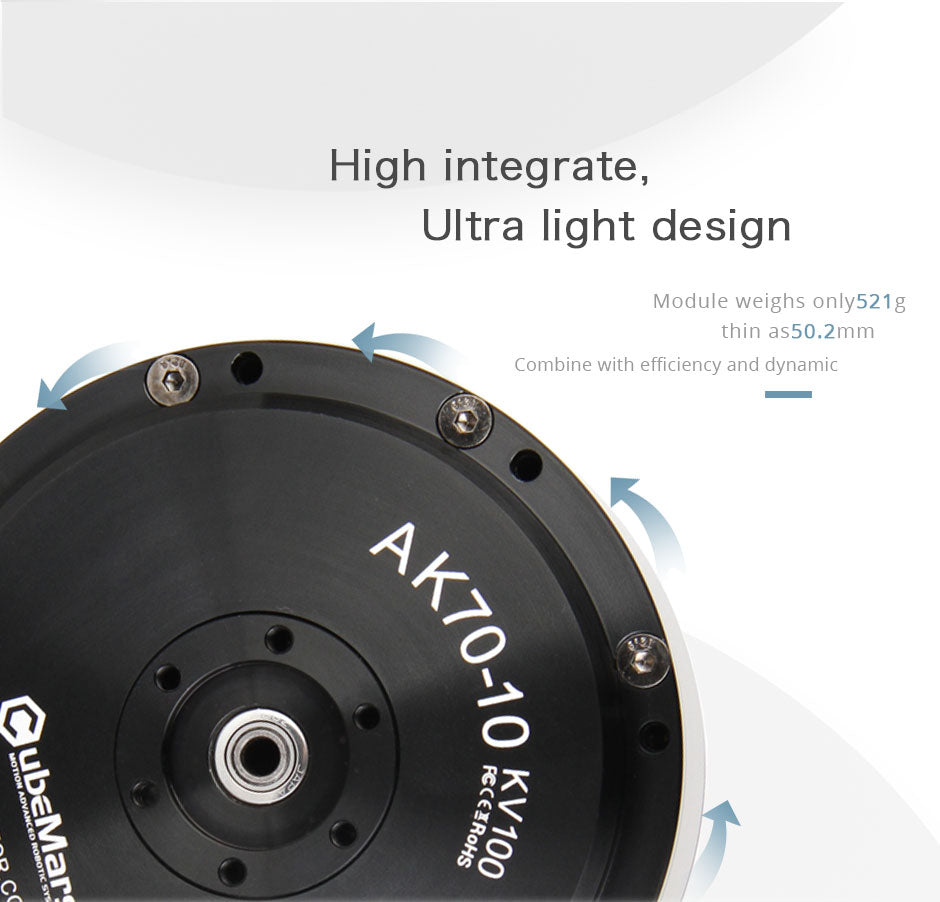

- Weight (lb / g): 1.15 / 521
- Peak torque (Nm): 24.8
- Rated torque (Nm): 8.3
- Peak current (ADC): 23.2
- Rated current (ADC): 7.2
- Rated voltage (V): 24
- Rated speed (rpm): 148
- Kv (rpm/V): 100
- Kt (Nm/A): 0.123
- Ke (V/krpm): 11.2
- Planetary gear reduction ratio: 10:1
- Backdrive (Nm): 0.48
- Backlash (°): 0.12
- Noise (dB 65 cm away from the motor): 58
- Maximum torque / weight ratio (Nm/kg): 47.6
- Drive control method: FOC (field-oriented control)
- Operation temperature (°C): -20 ~ +50
- Winding type: Delta
- Insulation class: H
- Insulation high-voltage: 1000V 5mA/2s
- Insulation resistance: 1000V10MΩ
- Phase: 3
- Pole pairs: 21
- Temperature sensor: NTC MF51B 103F3950
- Basic load ratings (dyn. C) N: 2000
- Basic load ratings (stat. C₀) N: 2520
- Phase to phase resistance (mΩ): 272
- Phase to phase inductance (µH): 113
- Inertia (gcm²): 414
- Km (Nm/√W): 0.24
- Mechanical time constant (ms): 0.74
- Electrical time constant (ms): 0.42

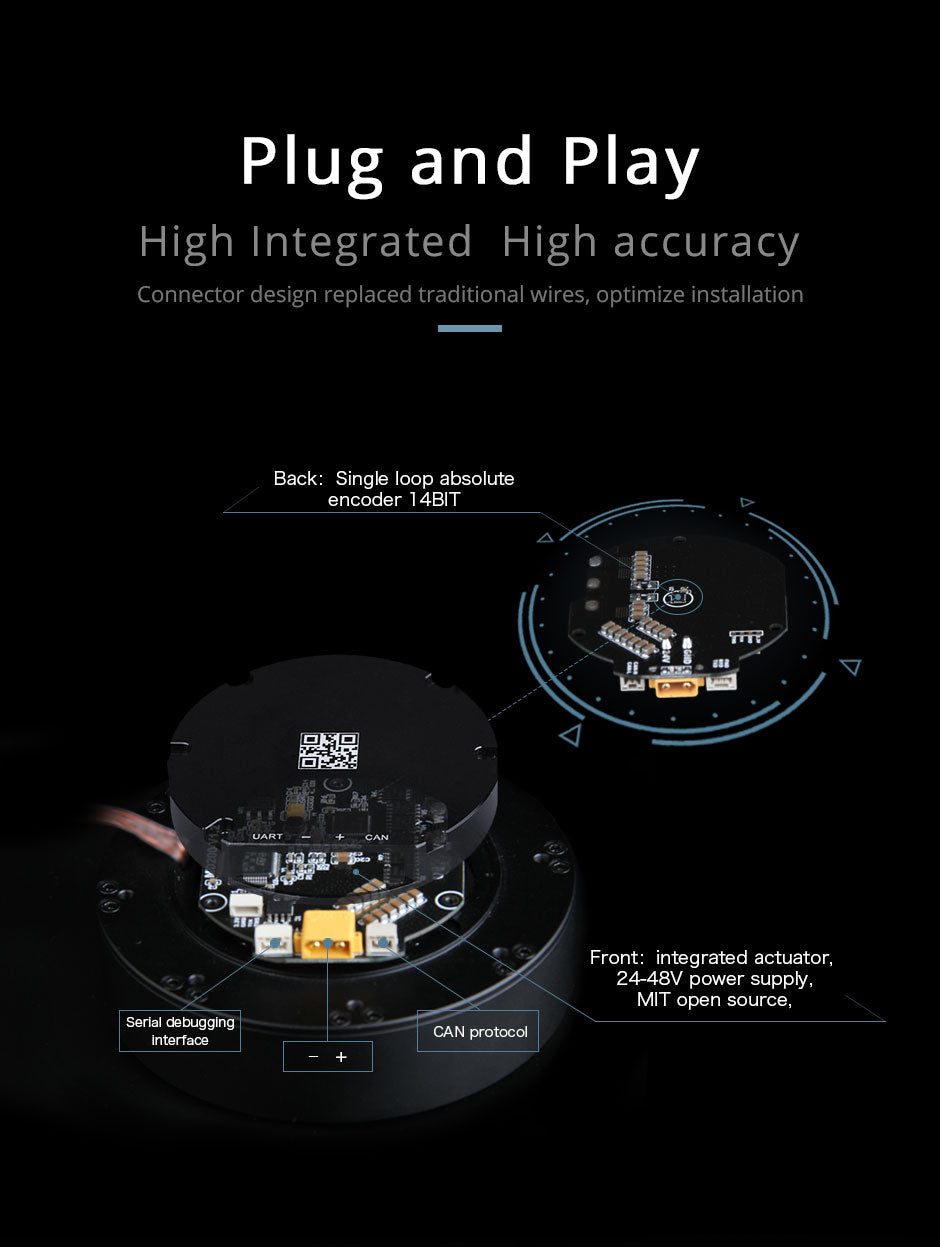

- Inner loop encoder type: Magnetic encoder
- Inner ring encoder resolution: 14-bit
- Outer ring encoder type: -
- Outer ring encoder resolution: -
- Number of encoders: 1

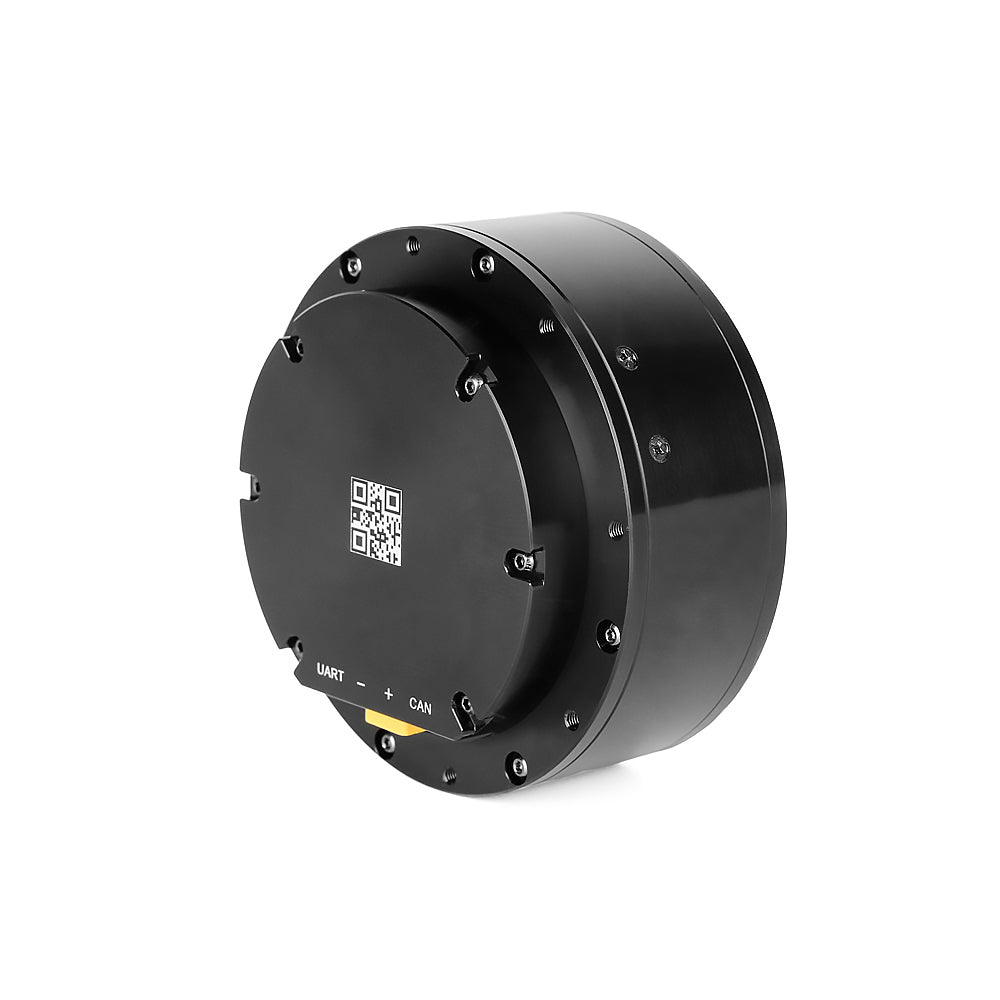

- CAN connector: A1257-WR-S-4P
- UART connector: A1257-WR-S-3P
- Power connector: XT30PW-M
